4. Prometheus and Grafana configuration

Deploy a local Prometheus and Grafana stack with Docker Compose

During this lab we will run the Prometheus and Grafana in Docker Compose. Configuration for this lab is based on https://github.com/vegasbrianc/prometheus. In the lab VM the Prometheus docker compose project was cloned to /root/prometheus.

1). Add scraping job definition to the Prometheus configuration file prometheus/prometheus/prometheus.yml by adding (uncommenting in the lab VM) the following code within scrape_config section:

  - job_name: 'btm-java'
    scrape_interval: 20s
    static_configs:
    - targets: ['xxx.xxx.xxx.xxx:9080']
      labels:
        app: 'b2m-java'
        group: 'production'

replace xxx.xxx.xxx.xxx with your own host machine's IP. In the Skytap lab VM, the IP address should be 10.0.0.1.

2). Start Prometheus & Grafana stack:

cd ~/prometheus
docker-compose down
docker-compose up -d

Expected output:

Creating network "prometheus_back-tier" with the default driver
Creating network "prometheus_front-tier" with the default driver
Creating prometheus_cadvisor_1      ... done
Creating prometheus_alertmanager_1  ... done
Creating prometheus_node-exporter_1 ... done
Creating prometheus_prometheus_1    ... done
Creating prometheus_grafana_1       ... done

Verify that Prometheus started via: http://localhost:9090

Set the Prometheus datasource in Grafana

Logon to Grafana via http://localhost:3000 - user: admin - password: foobar

Verify the prometheus datasource configuration in Grafana. If it was not already configured, create a Grafana datasource with this settings:

  • name: Prometheus
  • type: prometheus
  • url: http://localhost:9090
  • access: browser

Configure dashboard

Grafana Dashboard to import: ~/b2m-java/ibm-open-liberty-grafana-dashboard.json

Generate application traffic using provided script:

cd ~/b2m-java
./load_test.sh

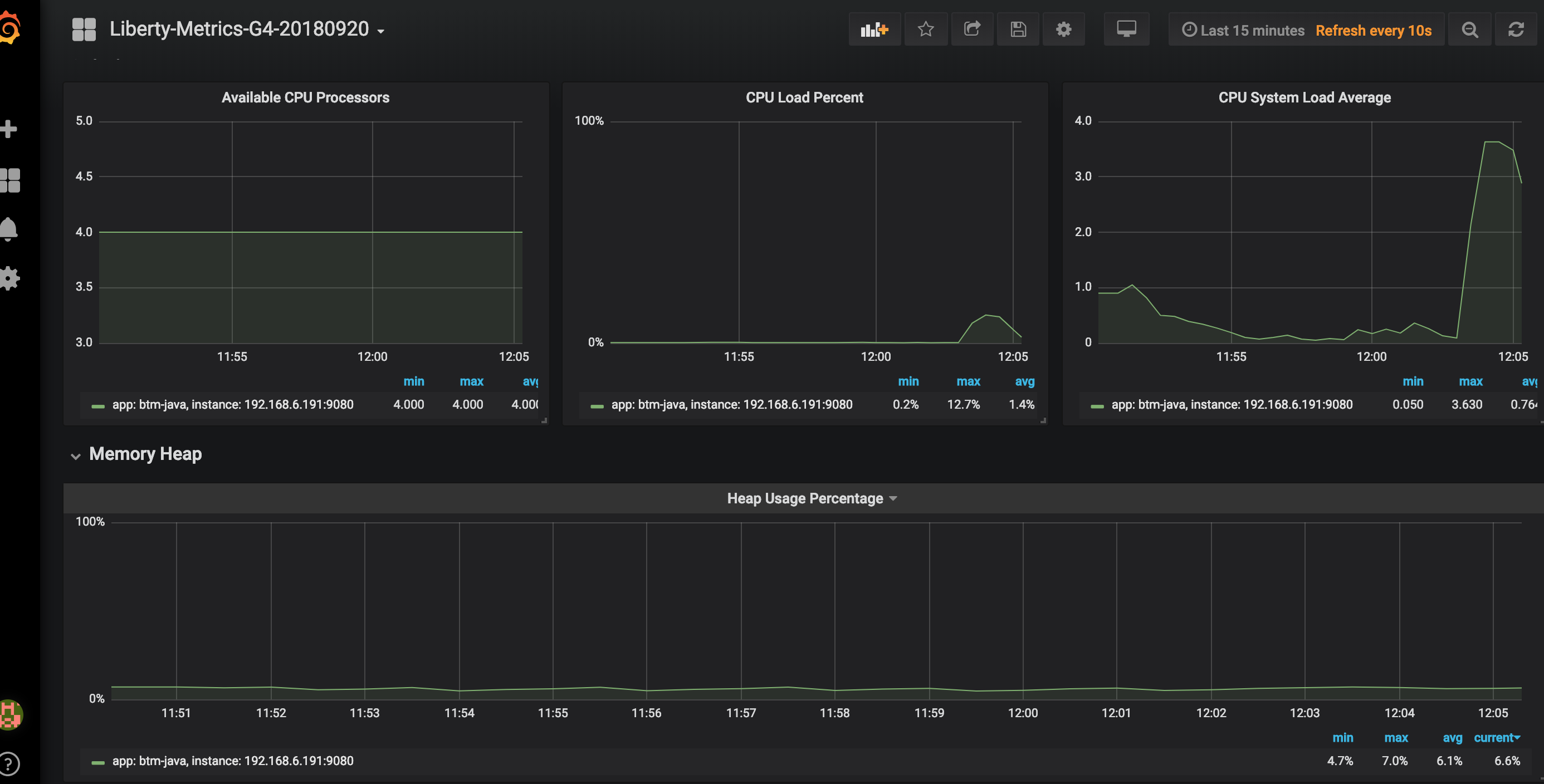

Expected views: CPU & Memory utilization for Liberty Profile:

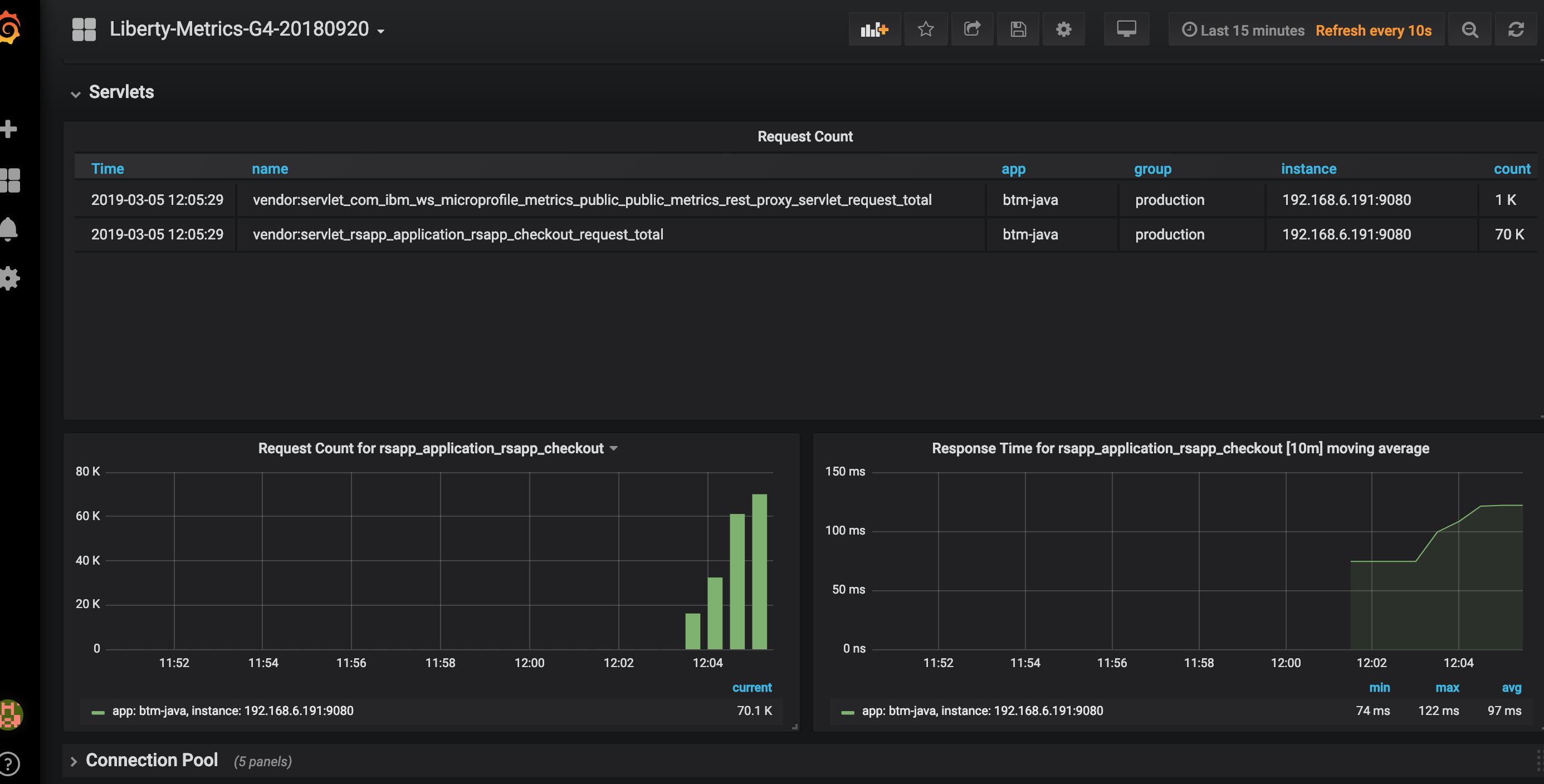

Servlet requests volume and response time:
