2. WLP logging and Elastic stack integration

A production service should have both logging and monitoring. Monitoring provides a real-time and historical view on the system and application state, and alerts you in case a situation is met. In most cases, a monitoring alert is simply a trigger for you to start an investigation. Monitoring shows the symptoms of problems. Logs provide details and state on individual transactions, so you can fully understand the cause of problems.

Logs provide visibility into the behavior of a running app, they are one of the most fundamental tools for debugging and finding issues within your application. If structured correctly, logs can contain a wealth of information about a specific event. Logs can tell us not only when the event took place, but also provide us with details as to the root cause. Therefore, it is important that the log entries are readable to humans and machines.

According to the 12-factor application guidelines, logs are the stream of aggregated, time-ordered events. A twelve-factor app never concerns itself with routing or storage of its output stream. It should not attempt to write to or manage log files. Instead, each running process writes its event stream, unbuffered, to stdout. If you deviate from these guidelines, make sure that you address the operational needs for log files, such as logging to local files and applying log rotation policies.

Configure the logging library

Java takes a customizable and extensible approach to logging. While Java provides a basic logging API through the java.util.logging package, you can easily use one or more alternative logging solutions instead. In this lab we will use java.util.logging.

Example implementation of logging

Look for the complete code in final/checkout.complete.java in case of problems.

Add the following line at the beginning of src/main/java/application/rsapp/checkout.java (after package statement), to load the logging module:

import java.util.logging.Logger;

then declare logger at the top of the class:

Logger logger = Logger.getLogger("rsapp.checkout");

When you want to emit the log entry, call the logger with appropriate log level and message:

logger.info(msg);

or

logger.severe(msg);

Uncomment the logger calls within src/main/java/application/rsapp/checkout.java.

Look for the complete code with logging in final/checkout.complete.java in case of problems.

We recommend to format logs in JSON, so it will be easily readable for log analytics software like Elastic stack. For WebSphere Liberty Profile it can be defined globally via environment variables. More information here.

Create a server.env file within b2m-java directory with the following contents:

WLP_LOGGING_CONSOLE_FORMAT=json
WLP_LOGGING_CONSOLE_SOURCE=message,accessLog,ffdc,trace
WLP_LOGGING_CONSOLE_LOGLEVEL=info

and add instruction to copy this file to the application container to Dockerfile:

COPY server.env /config/

Check the final/Dockerfile in case of problems.

Review the src/main/liberty/config/server.xml file. These lines are related to logging configuration:

  <logging traceSpecification="*=info"/>
   <httpAccessLogging id="accessLogging"/>
   <httpEndpoint httpPort="9080" httpsPort="9443" host="*" id="defaultHttpEndpoint" accessLoggingRef="accessLogging"/>
   </httpEndpoint>

traceSpecification specifies the trace level and httpAccessLogging enables WLP access log (disabled by default).

Remember to compare your changes to src/main/java/application/rsapp/checkout.java with final/checkout-complete.java. Verify your Dockerfile with final/Dockerfile.

Re-build the target/rsapp.war file with:

cd ~/b2m-java
mvn clean install

Create a Docker image for java application

Use modified Dockerfile to build application container:

cd ~/b2m-java
docker build -t b2m-java .

Integrate with the Elastic stack

The following procedure shows how to send the application logs to the local Elastic stack running in Docker.

Deploy a local Elastic stack with Docker Compose

During this lab we will run the Elastic Stack (Elasticsearch, Logstash, Kibana) in the Docker Compose. Configuration for this lab is based on https://github.com/deviantony/docker-elk. In the lab VM the Elastic Stack docker compose project was cloned to /root/docker-elk.

Briefly review the simple logstash configuration we use for this lab: /root/docker-elk/logstash/pipeline/logstash.conf:

input {
    gelf { port => 5000 }
}

filter {
    json { source => "message" }
    #we need level field in a numeric format
    mutate {
     gsub => [
      "level", "info", 6,
      "level", "error", 3
     ]
    }
    mutate {
     convert => { "level" => "integer" }
    }
}

output {
    elasticsearch {
        hosts => "elasticsearch:9200"
    }
    stdout { codec => rubydebug }
}

The above will reconfigure logstash to use gelf (Graylog Extended Log Format) protocol supported by Docker log driver, so we can directly stream application logs to Logstash using gelf.

1). Start Elastic stack:

cd ~/docker-elk
docker-compose up -d

Expected output:

Creating network "docker-elk_elk" with driver "bridge"
Creating docker-elk_elasticsearch_1 ... done
Creating docker-elk_kibana_1        ... done
Creating docker-elk_logstash_1      ... done

2). Verify you can access Kibana on http://localhost:5601.

Start the java application container and forward logs to Elastic stack

Start the application container with this command:

docker run --name btm-java -d -p 9080:9080 --log-driver=gelf \
--log-opt gelf-address=udp://localhost:5000 b2m-java

Simulate a couple fo transactions using Firefox or curl by accessing http://localhost:9080/rsapp/checkout:

for i in {1..10}; do curl http://localhost:9080/rsapp/checkout; done

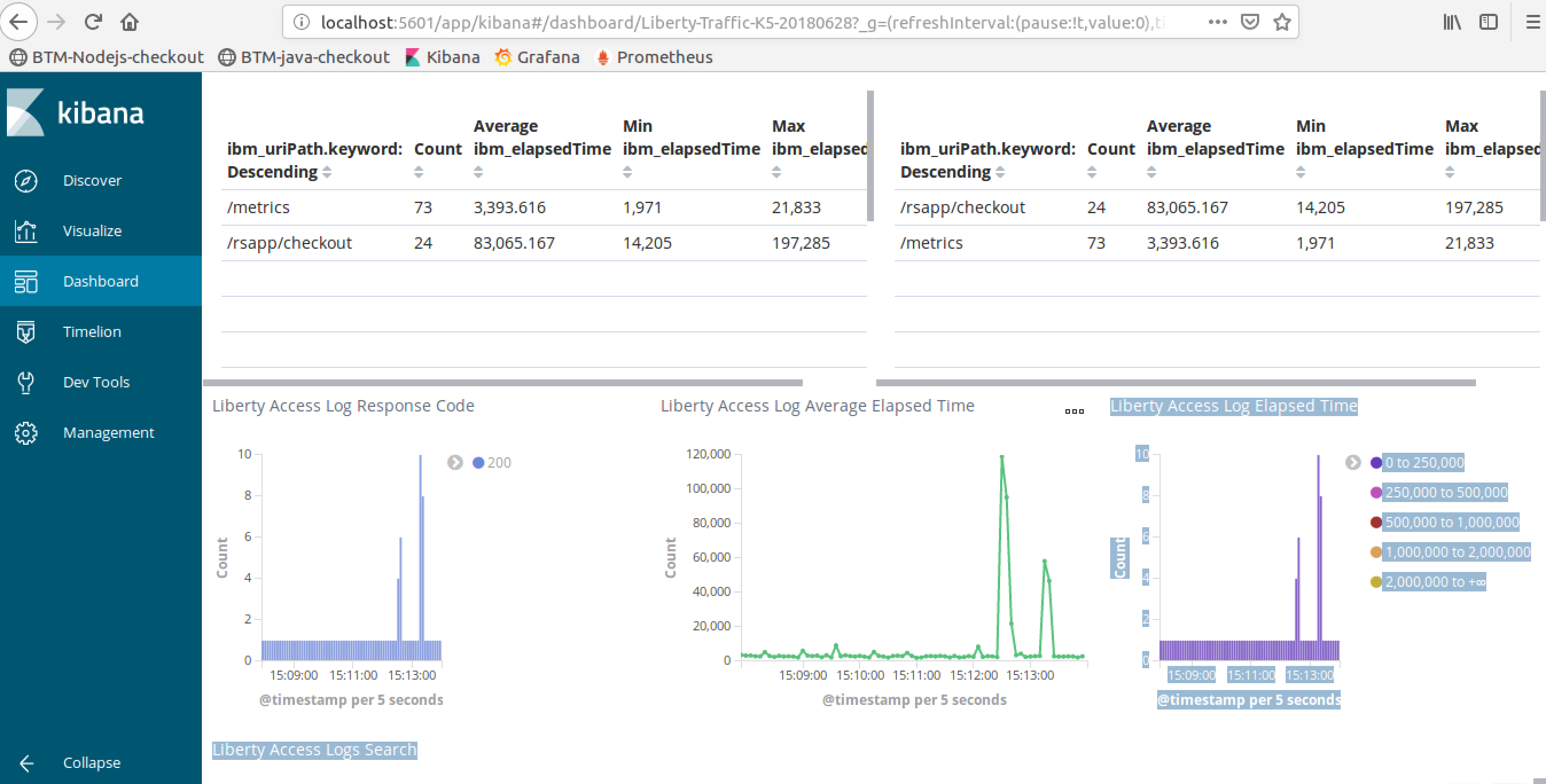

and check if you can see application log records in Kibana -> Dashboards -> Liberty-traffic.

In the lab vm environment, the Elastic stack has been preconfigured, so the example Dashboard and Visualizations should be available in Kibana out of the box.

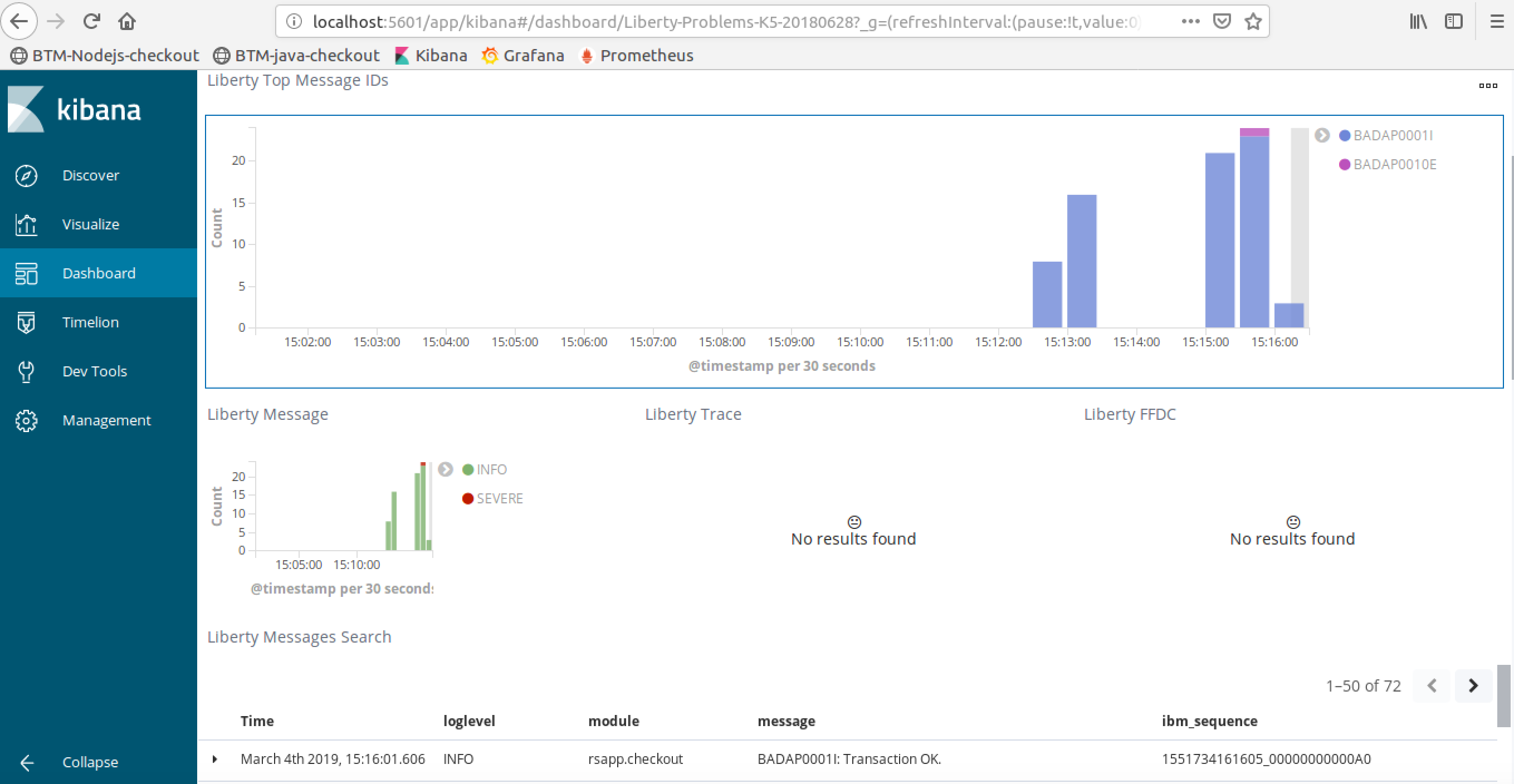

and Liberty problems:

In case of problems, you can also import Kibana configuration using provided Kibana dashboards: ibm-open-liberty-kibana5-problems-dashboard.json and ibm-open-liberty-kibana5-problems-dashboard.json

• Go to Kibana: http://localhost:5601
• Click on Management -> Saved Objects -> Import
• Select ibm-open-liberty-kibana5-problems-dashboard.json and then ibm-open-liberty-kibana5-problems-dashboard.json

Commit your changes to your GiHub repository:

cd ~/b2m-java
git config --global user.email "<your_github_email>"
git commit -am "I added logging to my app!"
git push

Access your Github via web browser and verify that you see recent updates and history of changes.

Stop and remove the java app Docker container before starting the next exercise.

docker stop btm-java
docker rm btm-java
